ASTM A179 Extruded Finned Tube
Product Overview
ASTM A179 Extruded Finned Tubes are high-performance heat transfer components manufactured from ASTM A179 seamless low-carbon steel tubes with an extruded aluminum fin sleeve mechanically bonded to the base tube. The extrusion process forms a solid, continuous fin structure that provides excellent thermal conductivity, superior mechanical strength, and long-term corrosion resistance.
Compared with conventional wound finned tubes, extruded fin tubes offer enhanced fin-to-tube contact, improved heat transfer efficiency, and exceptional durability in demanding industrial environments. These finned tubes are widely used in air-cooled heat exchangers, fin fan coolers, economizers, waste heat recovery units, power generation facilities, petrochemical plants, HVAC systems, and process cooling equipment.
Key Features
- Manufactured using ASTM A179 seamless cold-drawn low-carbon steel tubes.
- Fully extruded fin structure for maximum fin-to-tube bonding.
- Excellent thermal performance and heat transfer efficiency.
- High resistance to mechanical damage during transportation and operation.
- Superior atmospheric corrosion protection due to complete aluminum coverage.
- Suitable for medium-temperature and low-temperature heat exchange applications.
- Long service life with reduced maintenance requirements.
- Excellent vibration resistance in air-cooled heat exchangers.
- Compatible with various fin geometries and custom dimensions.
Manufacturing Process
The extruded finned tube is produced by first fitting an aluminum sleeve over the ASTM A179 base tube. Special extrusion rollers then plastically deform the outer aluminum layer, creating fins while simultaneously forming an intimate mechanical bond with the steel tube underneath.
This process creates:
- Continuous fin-to-tube contact.
- Minimal thermal resistance.
- Strong mechanical attachment.
- Enhanced corrosion protection for the base tube.
The resulting fin structure becomes an integral part of the tube assembly, providing superior reliability under long-term operating conditions.
Standard Dimensions
The following dimensions represent common manufacturing capabilities. Customized sizes are available upon request.
| Parameter |
Standard Range |
| Base Tube OD |
15.88 mm – 50.8 mm |
| Base Tube Wall Thickness |
1.2 mm – 5.0 mm |
| Tube Length |
Up to 18,000 mm |
| Fin Outside Diameter |
30 mm – 80 mm |
| Fin Height |
7 mm – 16 mm |
| Fin Thickness |
0.3 mm – 0.5 mm |
| Fin Density |
8 – 16 FPI |
| Fin Pitch |
1.6 mm – 3.2 mm |
| Fin Material |
Aluminum 1060 / 1070 / 1100 |
ASTM A179 Chemical Composition
The ASTM A179 specification covers seamless cold-drawn low-carbon steel tubes intended for heat exchanger and condenser applications.
| Element |
Composition (%) |
| Carbon (C) |
≤ 0.18 |
| Manganese (Mn) |
0.27 – 0.63 |
| Phosphorus (P) |
≤ 0.035 |
| Sulfur (S) |
≤ 0.035 |
The low carbon content provides excellent weldability, ductility, and thermal conductivity.
ASTM A179 Mechanical Properties
| Property |
Value |
| Tensile Strength |
≥ 325 MPa |
| Yield Strength |
≥ 180 MPa |
| Elongation |
≥ 35% |
| Hardness |
Typically ≤ 72 HRB |
These properties ensure excellent forming characteristics and reliable performance under thermal cycling conditions.
Heat Transfer Advantages
The extruded fin design significantly increases the external heat transfer area compared with bare tubes.
Benefits Include:
- Higher overall heat transfer coefficient.
- Reduced exchanger footprint.
- Lower airflow resistance.
- Improved energy efficiency.
- Reduced operating costs.
- Enhanced thermal performance in air-side heat transfer applications.
The fully bonded fin structure minimizes contact resistance, allowing heat to transfer efficiently from the tube wall to the surrounding air.
Quality Inspection and Testing
Every ASTM A179 extruded finned tube can undergo comprehensive inspection procedures to ensure compliance with project specifications and international standards.
Raw Material Inspection
- Material certificate verification.
- Chemical composition analysis.
- Dimensional verification.
- Surface condition examination.
Base Tube Testing
- Eddy current testing.
- Ultrasonic testing (UT).
- Hydrostatic pressure testing.
- Flattening test.
- Flaring test.
- Hardness testing.
Finned Tube Inspection
- Fin height measurement.
- Fin pitch verification.

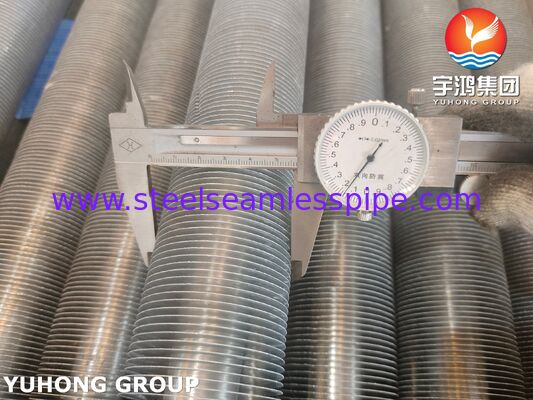

- Outside diameter inspection.
- Bond integrity inspection.
- Fin collar uniformity examination.
- Straightness verification.
- Visual surface inspection.
Optional Third-Party Inspection
- SGS
- BV
- TÜV
- Intertek
- Lloyd's Register
Inspection reports can be supplied according to customer requirements.
Typical Applications
Air-Cooled Heat Exchangers
Used extensively in refineries, petrochemical facilities, and gas processing plants where air serves as the cooling medium.
Power Generation
Applied in condensers, auxiliary cooling systems, and waste heat recovery units.
Petrochemical Industry
Suitable for process cooling, hydrocarbon condensation, and thermal recovery systems.
HVAC and Refrigeration
Widely used in chillers, condensers, evaporators, and industrial ventilation systems.
Industrial Heat Recovery
Enhances energy efficiency by recovering heat from exhaust gases and process streams.
Available Supply Conditions
- Bare tube + extruded fin assembly
- Cut-to-length tubes
- Tube sheet expanded ends
- Plain ends for welding
- Galvanized protection caps
- Export seaworthy packing
- Customized project specifications
